Location:
Pol-e-Khatoon area, Sarakhs, Khorasan Razavi province
Activity:
Dams and Water Resources
Client:
Ministry of Energy & Water (Turkmenistan), Khorasan Razavi Regional Water Company
start date:
Completion Date:
Project Description:
Services: Study & supervision on execution
Objective: Hydro power, Irrigation, Potable Water Supply, Flood Ctl.
Type of dam: Earth-fill with silt-clay core
Height: 78 m
Crest Length: 655 m
Vol. of Embankment: 5.8 MCM

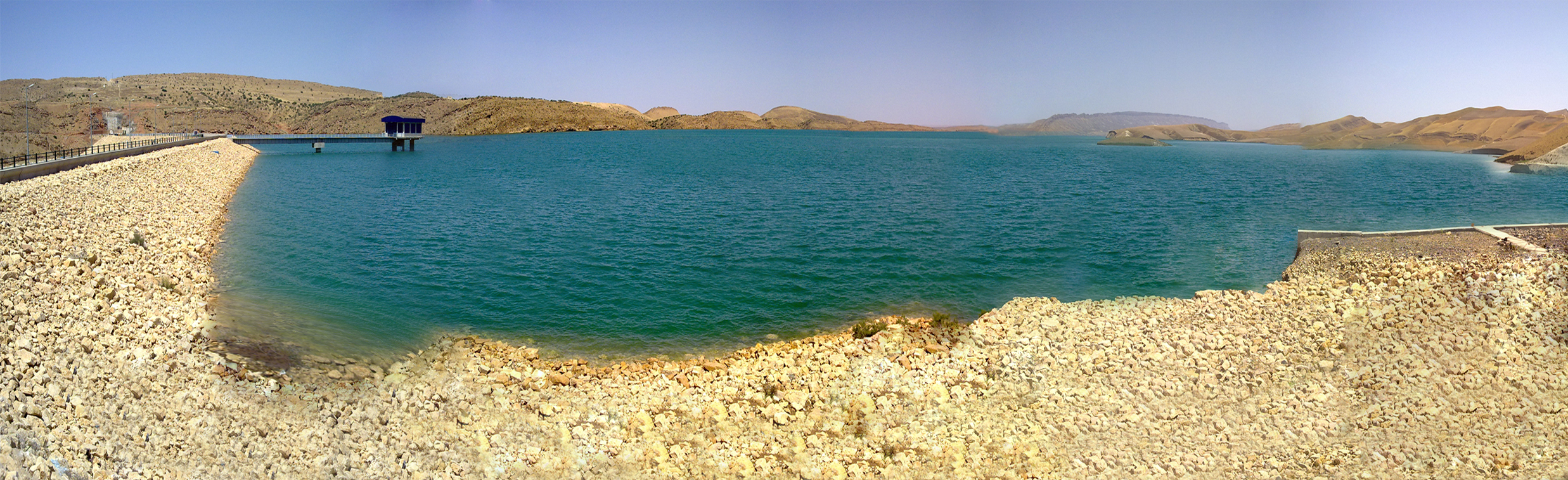

Reservoir volume: 1250 MCM
Regulating water capacity: 640 MCM with fix operation and 735 MCM with variable operation

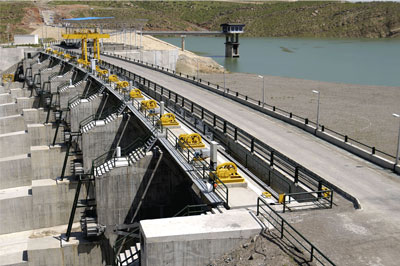

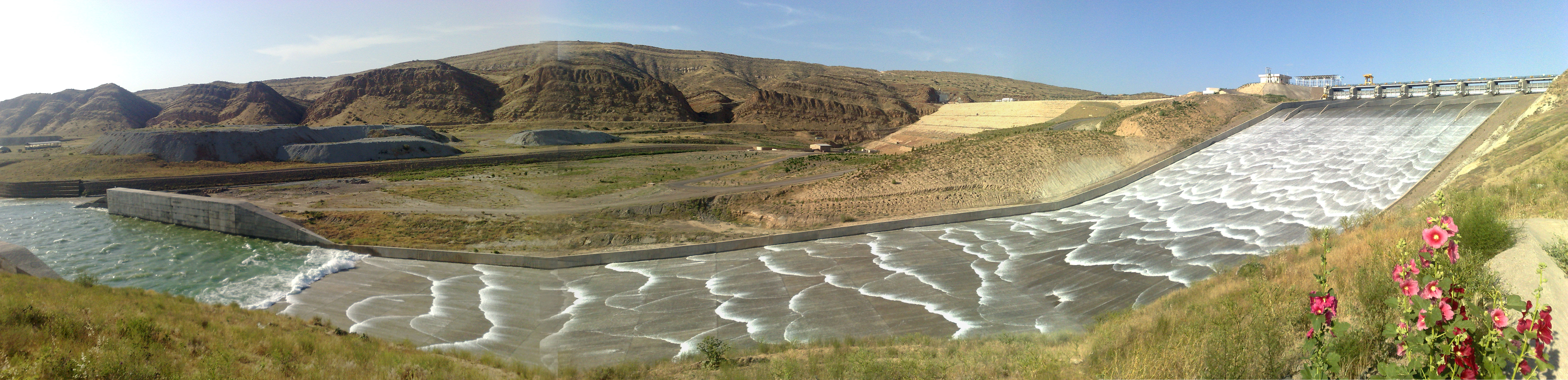

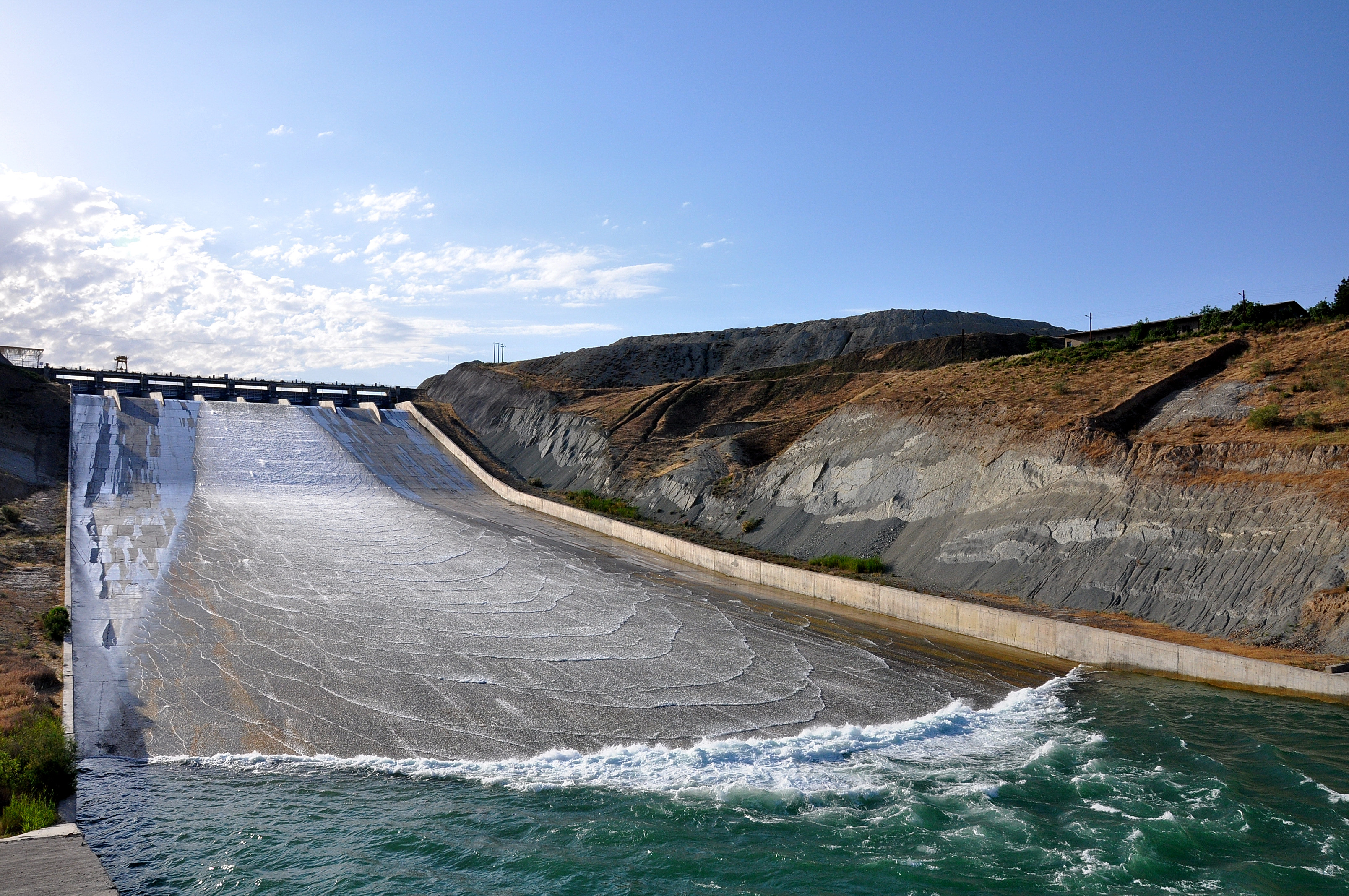

Spillway type: 8*15 m o gee gated chute
Design flood: 2660 m³/sec

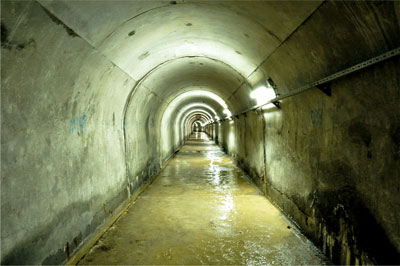

Diversion system: Triple opening concrete culvert, 1200 m³/sec
Bottom outlet capacity: 106 m³/sec
Status: Under operation since 2005
